FindBox Hardware Tear Down

FindBox Hardware Tear Down

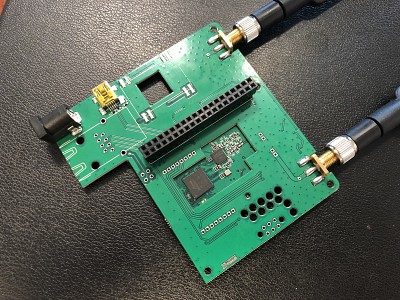

Findbox hardware tear down, Smart Electronic Shelf Labels (ESL) price tag wireless access point (APs) driven by Raspberry Pi with a custom WiFi network daughter card.

Total 22 photo(s) in this album. [Enter]

Activity Tracker Tear Down

Activity Tracker Tear Down

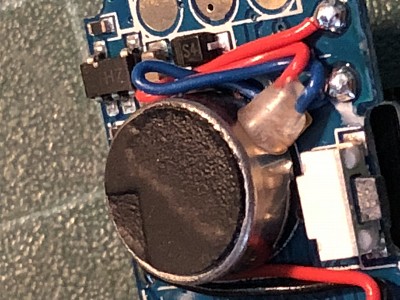

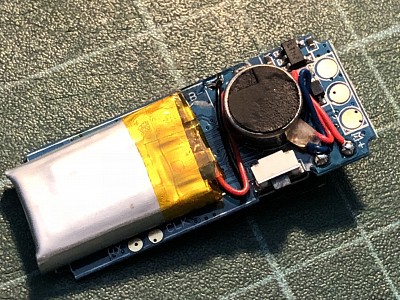

In this photo journal we opened up a Chinese clone activity tracker, learned great technology used in device and pretty smooth component layout. It works

Total 23 photo(s) in this album. [Enter]

AMD Ryzen 7 1800X PC build

AMD Ryzen 7 1800X PC build

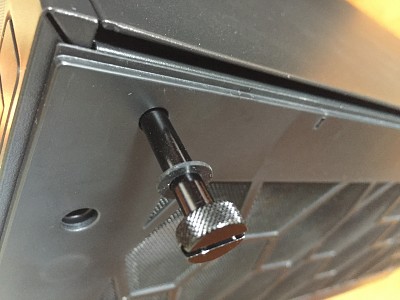

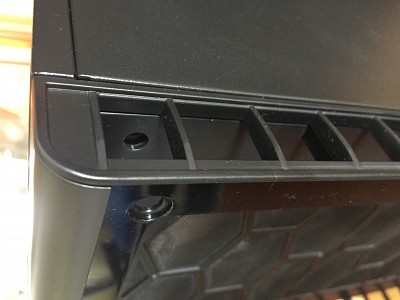

In-house project 2017, we are replacing one of our general purpose workstation. It is our first time ever, going dark side using AMD processor.

Total 37 photo(s) in this album. [Enter]

Crestron GLS-ODT-C-CN

Crestron GLS-ODT-C-CN

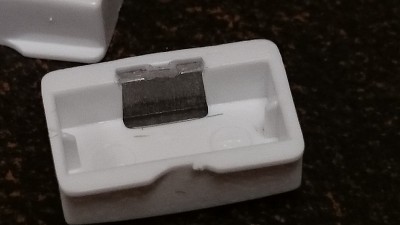

Here we have another episode of Crestron teardown, this time we opened up a brand new Crestron GLS-ODT-C-CN occupancy sensor module. We are intrigued by the sophisticate design and component counts, the module features two type of motion sensing technology. PIR (Passive Infra Red) and Ultra Sonic sensor, A sensor fan wet dream comes true.

Total 31 photo(s) in this album. [Enter]

Crestron C2N-DB

Crestron C2N-DB

A tear down of Crestron C2N-DB wired keypad. The product features two PCBs (Back PCB for Crestnet connection and Front PCB for keypad buttons). We have closed up photos of both PCBs, the buttons and the enclosure.

Total 30 photo(s) in this album. [Enter]

Crestron MC3

Crestron MC3

A quick tear down of Crestron MC3 showing all electronics and the Windows CE component. Must See.
